JavaFX 2.0 bubblemark

  • Post category:Java / javafx / UI

Oracle has released the revamped JavaFX 2.0 on JavaOne 2011. It’s an interesting step which immediately invokes many questions. What is the target audience for JavaFX? Which technology segment does it aim at? What are the chances it will actually claim a piece of that segment? Is it any good at the segment it is aiming at? Only the future will tell the answers to all the questions. But some can be attempted to be answered today.

First of all a short summary of what I believe JavaFX 2.0 is: JavaFX attempts to be a higher performance graphics framework, with a UI layer on top, able to display different types of media.

  • “Higher” means that it is not aiming at high end gaming (for example the recently released Battlefield 3 and Call of Duty Modern Warfare 3), but more at the level of platform games like Mario Bros or the fancier and animated user interfaces that some applications have lately.
  • “Graphics framework” indicates that it is not a UI library in its core (like Swing or SWT), but its designed primarily for drawing, manipulating and animating shapes like circles, rectangles and lines.
  • “UI layer on top” to note that it does come with a good set of UI controls, that are drawn using the graphics framework and thus can easily be made “fancy”.
  • “able to display different types of media” means that there is support for playing audio or video streams.

This kind of framework is commonly known as a RIA, or rich internet application, framework.

Having established the technical intention of JavaFX, the first step would be to see if it is any good at what it’s trying to be. This means bringing out the tame racing driver, aka a common frame of reference. For benchmarking a RIA the unofficial first thing to do is throw the bubblemark test at it.

Bubblemark contains a lot of different implementations and because I do not like to reinvent the wheel, it seems a good idea to adapt an existing test to JavaFX 2.0. Naturally there is the JavaFX 1.0 implementation, but since that uses JavaFX script, porting it could be, ahm, more work. The other approach would be to adapt the Swing version and because it is implemented in Java, adapting that may be, ahm, less work. Furthermore it is fair to say that JavaFX will initially appeal to Swing developers, so running both side by side also makes for an interesting comparison.

The Swing (optimized version) Bubblemark code seems somewhat illogically structured, but after a closer look it turned out that most logic was put in the Ball class. Extending that with a JavaFXBall implementation was fairly easy. The Swing version uses a bitmap image of a ball, but testing a full vector JavaFX version is relevant, so in fact two classes were made: JavaFXBallBitmap and JavaFXBallVector.

Next the actual test case. The Swing version is implemented as an Applet, to make life not unnecessary complex at this stage, I chose to quickly rewrite that to use a JFrame and write the JavaFX code to use a regular Scene. A browser embedded version can be made later. Furthermore I wanted to put the results in a graph, so I adapted the test cases to calculate the number of frames per second (after a short warm-up period) and then output that on stderr and then automatically increment the number of balls with 100.

The Swing version uses javax.swing.Timer to move the balls, for JavaFX I decided to use javafx.animation.AnimationTimer. And basically that is it: start the timer, count the frames and see how many are done in a second. Below the test case code:

package javaballsopt;

import java.util.ArrayList;
import java.util.List;

import javafx.animation.AnimationTimer;
import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.image.Image;
import javafx.stage.Stage;

public class JavaFXTest extends Application

	public static void main(String[] args)

	public void start(Stage stage)
			// get the image
			URL url = javaballsopt.JavaBallsApplet.class.getResource(>resources/ball.png>);
			Image lImage = new Image(url.openStream());

			// create the ball object
			final JavaFXBallBitmap lJavaFXBall = new JavaFXBallBitmap(lImage);
			//final JavaFXBallVector lJavaFXBall = new JavaFXBallVector();

			// create the JavaFX container to hold the balls and add the first ball
			Group root = new Group();

			// add 99 more balls by cloning it (this is the way the Swing test does it... clone also adds the ball to the group)
			for (int i = 0; i < 99; i++)
				javaFXBalls.add( lJavaFXBall.clone() );

			// create scene
			Scene scene = new Scene(root, 500, 300);

			// create and show stage

			// create the incrementing test scenarion
			// let's be bold and time using nanoseconds; expectations are high
			starttimeNano = System.nanoTime();
			new AnimationTimer()
				public void handle(long arg0)
					// for all balls
					int s = javaFXBalls.size();
					for (int i = 0; i < s; i++)
						// move the ball

					// for all possible ball interactions
					for (int i = 0; i < s; i++)
						for (int j = i+1; j < s; j++)
							// detect collision and change movement accordingly
							javaFXBalls.get(i).doCollide( javaFXBalls.get(j) );

					// count the frame

					// check if a second has passed
					long currenttimeNano = System.nanoTime();
					if (currenttimeNano > lasttimeFPS + 1000000000)
						// print out each FPS on stdout
						System.out.println(javaFXBalls.size() + > balls > + frameCnt + > fps>);

						// increase the test counter

						// after 5 tests (warm up period)
						if (measurementTest == 5)
							// print the result on stderr in a Excel readable form
							System.err.println(javaFXBalls.size() + >;> + frameCnt + >;>);

							// add 100 balls
							for (int i = 0; i < 100; i++)
								javaFXBalls.add( lJavaFXBall.clone() );

							// clear the test counter
							measurementTest = 0;

							// stop at 5000 balls
							if (javaFXBalls.size() > 5000) System.exit(0);

						// reset frame count and time
						frameCnt = 0;
						lasttimeFPS = currenttimeNano;
		catch (Throwable t) { t.printStackTrace(); }
	List<JavaFXBall> javaFXBalls = new ArrayList<JavaFXBall>();
	int frameCnt = 0;
	long starttimeNano = 0;
	long lasttimeFPS = 0;
	int measurementTest = 0;

Below is the output of the JavaFX run:

100 balls 1 fps
100 balls 56 fps
100 balls 61 fps
100 balls 60 fps
100 balls 61 fps
200 balls 60 fps
200 balls 60 fps
200 balls 61 fps
200 balls 60 fps
200 balls 61 fps
300 balls 60 fps
300 balls 61 fps
300 balls 60 fps
300 balls 60 fps

The first thing that stood out is that AnimationTimer caps the FPS as 60 fps. After an initial confusion this does not seem that bad; we’re not interested in values greater than 60 fps, those are smooth anyhow, but when it gets below. So with a little help from Excel, there is a nice graph:

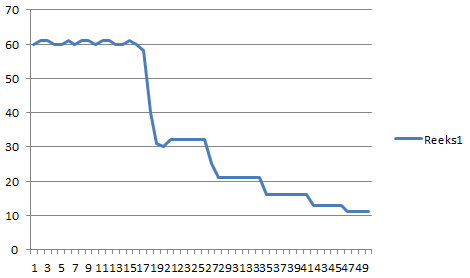

The result was not what I expected. There seems to be some kind of stepping in the FPS, especially the sudden drop at around 1700 balls; I expected a curve. I reran the test several times, but the results are the same. Naturally I hope people will repeat it on their systems. For reference, I have a 2.4 Ghz quadcore Intel CPU (but the test does not do multi-threading) and a nVidia GTX 560 graphics board (since JavaFX uses hardware acceleration).

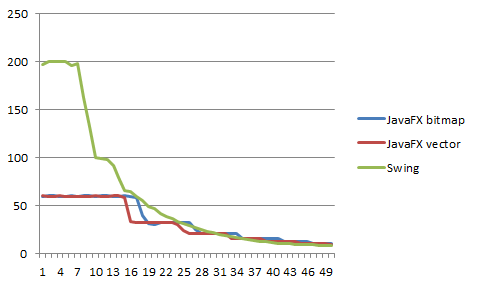

So, how about the vector version and the Swing version then? Well, after running and loading them into Excel I got this graph:

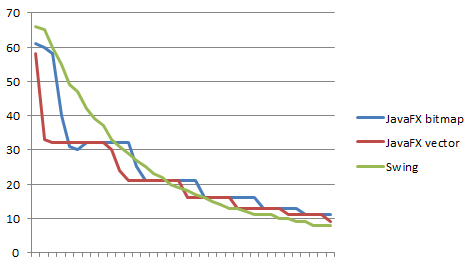

Again, not what I expected. I would expect JavaFX to be considerably faster than Swing. Zooming into the part where Swing also breaks the 60 fps barrier:

Swing has the curve I expected and JavaFX does not. The results as a whole are not what I expected and makes me question the Bubblemark test. If you comment out the collision code, the FPS go up. So the question is: what is the Bubblemark code actually testing? The performance of JavaFX or the implementation of the collision code?

For those interested to run the code for themselves: the JFrame version of the Swing test is in the JavaBallsApplet class, the JavaFX version is in the JavaFXTest. Alternating between line 32 and 33 will give the bitmap or vector version.
